Often I get asked if a car’s air conditioning is actually working or if it just feels weak on a hot day. It is easy to worry when the cabin stays warm, but there are simple ways to check the health of your system. You do not need expensive tools to find the answer. Today I will show you how to measure the temperature and spot a faulty compressor clutch before you head to a shop.
You need to know that a healthy AC system should blow air between 35 and 45 degrees Fahrenheit on a normal day. If the outside air is scorching, the vents might push out air closer to 50 degrees. Start by grabbing a basic kitchen thermometer. Put it in the center vent, turn the fan to high, and let it run for a few minutes. If the reading stays higher, you likely have low refrigerant levels.
Why Does My AC Feel Weak?
The AC system relies on a few parts to work together. When one fails, the whole process stops. You need to look at the basics to find the real trouble.
The Refrigerant Gas
This gas travels through the pipes to remove heat. If your system has a leak, the gas escapes and the air gets warm. You might need a professional to find the hole. Do not just add more gas without checking for a leak because it will escape again.
The Compressor Clutch
This part kicks the AC system on when you press the button. If it stays stuck or never engages, the system will not cool anything. You can hear a click under the hood when it starts. If it never clicks, your ac compressor failure might be the culprit.
The Cabin Filter
Most people forget to change this part behind the glove box. If it gets clogged with leaves or dust, the air cannot pass through into the cabin. The system works hard, but you feel almost nothing coming out. Swap it out to see if it fixes the flow.
The Cooling Fans
These fans sit behind the radiator to move air through the system. If they stop, the heat stays trapped in the engine bay and the AC stops cooling well. Check the fuse box first because a blown fuse often causes the fan to stay dead and quiet.

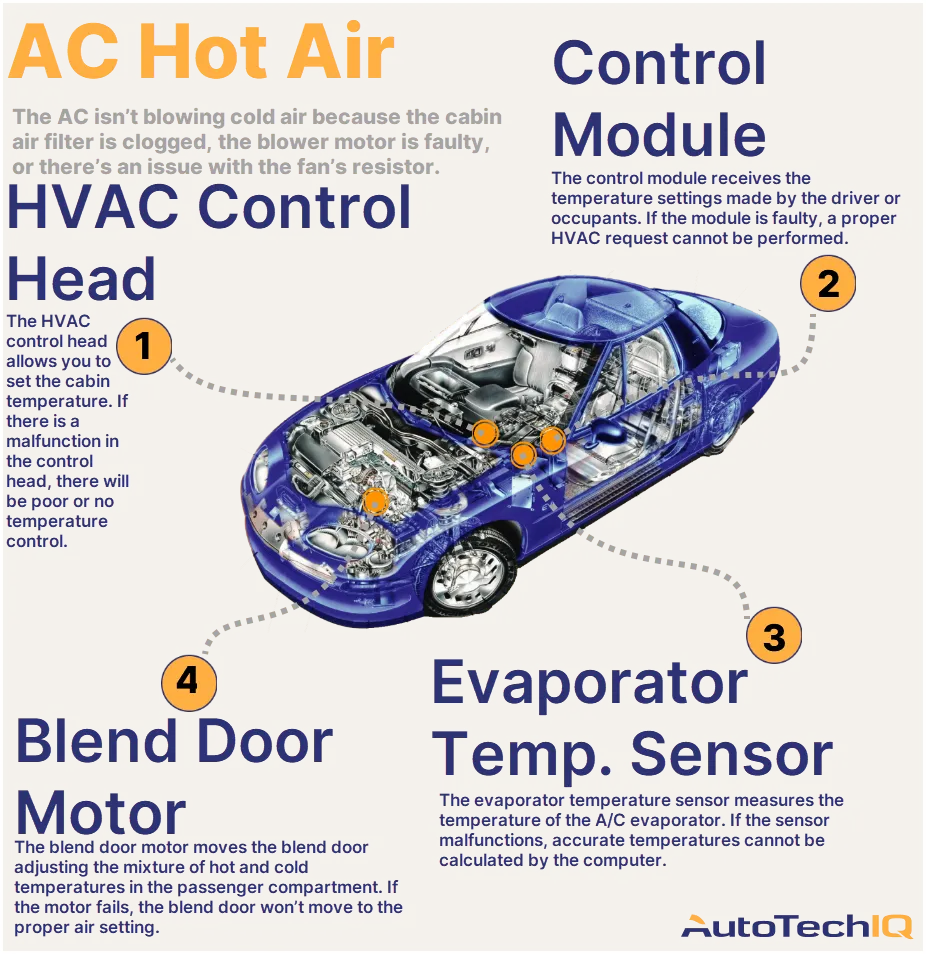

The Blend Door
This door inside the dash switches between hot and cold air. If the motor that moves the door breaks, you might get hot air even when the AC is set to cold. It sounds like a clicking noise behind your dash when you change your settings.
The Pressure Switch
This sensor tells the computer when it is safe to run the AC. If the switch breaks or has a bad wire, the system shuts down for safety. You can test this with a basic multimeter to see if the signal gets through the wires at all.
You should always verify your ac system pressure before buying parts. Most shops charge a lot, but you can save money by doing the small checks yourself.
- Check the cabin air filter.
- Listen for the compressor click.
- Test with a cheap thermometer.
- Look for leaks under the hood.
- Check your fuse box for damage.
- Verify the cooling fan spins.
How to Test and Measure Proper AC Vent Temperature
Finding the perfect vent temperature requires a little patience and the right environment. You must park the car in the shade to get the most accurate results for your system.
Initial Setup Steps
Park your vehicle in a cool area and start the engine. Turn the AC to the maximum cold setting and turn the internal fan to the highest speed. Keep all windows rolled down for the best airflow. This allows the system to cycle through the air properly.
Thermometer Placement Methods
Slide your digital thermometer deep into the center dashboard vent. You want it as far in as possible to avoid picking up the heat from the dashboard itself. Leave it there for at least three minutes. This gives the cooling coils enough time to reach their lowest temperature point.
Comparing Outside Air
Look at the local weather report to find the current outside temperature. A working system should lower the temperature by 20 to 30 degrees compared to the air outside. If it is 90 degrees out, your vents should reach 60 degrees. If you see high numbers, you might have clogged condenser fins.
Evaluating Air Flow
Watch the vents while you change the fan speeds. The air should feel strong and consistent at every setting. If the air volume drops when the fan is on high, you might have a blocked evaporator core causing trouble for the airflow.
Analyzing Temperature Drops
Wait for the compressor to cycle a few times while the thermometer is in the vent. If the temperature fluctuates wildly, your system likely has air in the lines. This often happens after you attempt a diy refrigerant recharge without using a proper vacuum pump to remove air.
Checking Final Results
Write down the temperature reading once the numbers stop moving. If the reading is within the range of 35 to 45 degrees, your system is doing its job well. If you are still sweating, you might need to check your ac belt tension for any signs of slipping.
You can usually tell if the system is failing by the way it cycles. If it runs for a second and then shuts off, you might have an electrical connection issue to fix.
- Always wear eye protection.
- Do not overfill the refrigerant.
- Check for oily residue leaks.
- Listen for unusual grinding sounds.
- Verify the cabin air flow.
- Document your temperature readings daily.
Can I Fix a Low Refrigerant Issue by Myself?
Adding refrigerant is a task that looks easy on a can, but it carries risks. You need to know that overfilling the system causes more damage than having too little gas inside. The system needs a specific amount of pressure to move the heat out of your car, and it is hard to judge that without a gauge.
I once tried to top off my own system, but I ended up blowing a seal because the pressure went too high. It cost me much more to replace that seal than it would have cost to just pay a shop for a proper charge. Be careful with those store-bought cans.
If you decide to try it, make sure you have a manifold gauge set. Never rely on the cheap gauge that comes attached to the refill can. Those are rarely accurate enough to keep your system safe. A real gauge lets you see both the high and low sides of the system.
Always look for the leak before you add any more gas to the lines. A leak means you have a hole, and gas will just keep escaping until the system is empty again. Use a UV dye kit to find the bright spots where the gas is leaking out of the hoses.
- Use a manifold gauge.
- Find the leak first.
- Wear thick safety gloves.
- Check the system capacity.
- Avoid cheap refill cans.
- Never overfill the lines.
Why Does My AC Blow Hot Air When I Stop the Car?
This problem usually points to the cooling fan sitting right behind your radiator. When you drive on the highway, air flows through the grill naturally. This cools the condenser, which helps the AC work, but it stops working once you pull up to a red light or sit in traffic.
Without the fan spinning, the heat builds up rapidly in the condenser. The system cannot release that heat, so it stops cooling the air and starts pushing out whatever temperature is under your hood. It makes sitting in traffic a truly miserable experience on a hot summer afternoon.
Check your fan by turning the AC on while the car is parked in the driveway. Pop the hood and look at the radiator fan. It should be spinning at a high speed. If it is dead, you have found the main reason for the hot air at stoplights.
Check the electrical connector to the fan for melted plastic or burnt wires. Sometimes the fan motor itself just wears out from years of heavy use. Replacing the fan assembly is often a straightforward job that you can do with basic hand tools in your own garage.
- Test the radiator fan.
- Check the engine coolant.
- Inspect the fan relay.
- Look for loose wires.
- Clean the front grill.
- Test the temperature sensor.
Should I Be Worried About an AC Smell?
A bad smell from the vents usually means mold is growing on the evaporator core. This happens because moisture collects there when the AC is running. If you park the car and turn it off, that moisture sits in the dark and starts to grow mildew over time.
It is common in humid climates, but it is not something you want to breathe in every day. You can buy specialized sprays to clean the evaporator. These sprays kill the mold and leave the vents smelling fresh again. It is a simple step that makes a big difference.
Another reason for a smell could be a dead animal or leaves stuck in the intake. Check the area under your windshield wipers where the air gets pulled into the car. If you find a pile of debris, clean it out and check your cabin filter again for signs of intrusion.
If the smell reminds you of maple syrup, that is a sign of a heater core leak. That is a different problem that involves your engine coolant. If you see fog on your windshield, get that checked at a shop immediately because it is not just mold.
- Check the cabin filter.
- Use an evaporator spray.
- Clear the intake vents.
- Watch for coolant leaks.
- Look for wet carpets.
- Change the air settings.
Does the Compressor Need a Specific Oil?
Yes, the compressor needs special oil to keep the internal parts moving smoothly. If this oil leaks out or if you use the wrong type, the compressor will fail quickly. It is a very precise system that does not tolerate mistakes. Most refrigerant cans include some oil, but it is not enough for a full flush.
If you have to replace the compressor, you must also replace the accumulator or receiver drier. This part acts like a filter for the moisture and debris in the system. If you leave the old one in, it will send junk back into your new compressor and ruin it within a few weeks.
Always check the manual for your specific car to see what type of oil it requires. Using the wrong oil will cause the compressor to seize up. It is a costly mistake that forces you to do the whole repair process over again. Be very careful with the specifications.
Make sure you measure the oil correctly if you are rebuilding a part of the system. Too much oil will make the system inefficient, and too little will cause the compressor to overheat. It is a delicate balance that keeps the cold air flowing through your vents during the summer.
- Use the right oil.
- Replace the drier.
- Follow the manual.
- Avoid cross-contamination.
- Check the volume specs.
- Keep the system clean.
Final Thoughts
I hope this helps you get your AC back to working order. Most of these problems are things you can handle if you take your time and follow the steps. Remember to keep an eye on the temperature and listen for any strange noises. If you ever feel unsure about the pressure, it is better to ask for help than to risk an injury. Good luck with your repair, and stay cool out there!
| Part Name | Role | Status Check |
|---|---|---|
| Compressor | Pumps gas | Listen for click |
| Condenser | Releases heat | Check for debris |
| Evaporator | Cools air | Check for smell |
| Expansion Valve | Meters flow | Look for frost |
| Cabin Filter | Cleans air | Check for dust |
| Refrigerant | Transfers heat | Use a gauge |
| Cooling Fan | Moves air | Watch the spin |
| Blend Door | Mixes air | Listen for clicks |
| Pressure Switch | Safety sensor | Test with meter |
| Drier | Removes moisture | Change with pump |
Frequently Asked Questions
Is It Normal for AC to Drip Water?
Yes, it is perfectly normal for your AC to drip water under the car. This is just condensation collecting on the evaporator core and draining outside through a small tube.
Can I Recharge My AC Without a Gauge?
No, you should never attempt to recharge the system without a proper gauge. You risk overfilling the lines, which can lead to a broken compressor or a blown seal inside.
Are High Vent Temperatures a Sign of a Bad Relay?
Sometimes a bad relay prevents the compressor from turning on. If your compressor does not engage, check the relay before you assume the entire system is empty of refrigerant.
Do I Need to Flush the Entire System?
You only need to flush the system if you have had a compressor failure. The failure can send metal debris through the lines, which will block the new compressor.
Should the AC Run in the Winter?
Yes, it is good to run the AC for a few minutes each month during the winter. This keeps the seals lubricated and prevents the system from drying out completely.
Will a Blown Fuse Stop the AC Completely?
Yes, a blown fuse will often stop the compressor or the cooling fan from working. Always check your fuse box for any damaged circuits before you start buying parts.
Does Outside Humidity Affect the Vent Temperature?
Yes, high humidity makes it harder for the AC to lower the temperature. The system has to work much harder to remove moisture from the air before it cools.
Can a Bad Alternator Affect the AC Performance?
Yes, if the alternator is not providing enough power, the electrical components like the clutch and the fan might not function correctly, leading to warm air from vents.
